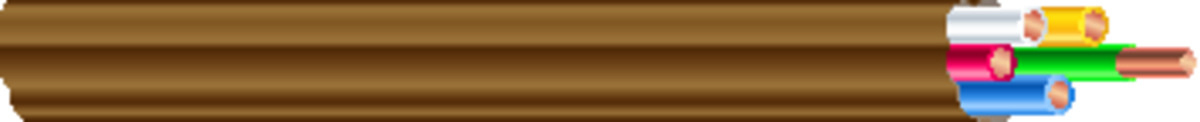

Baron Tstat Wire

Thermostat Wire is a class 2 power-limited circuit cable for use in thermostat control applications from floor to floor and up access shafts without conduit.

Download Category Specifications

Application & Features

Thermostat Wire is a class 2 power-limited circuit cable for use in thermostat control applications from floor to floor and up access shafts without conduit

Specifications

Select a set of products below for more information:

	Cond. Size
More Options	null AWG null AWG

Standards & References

150 Voltage rating per NEC® Article 725
ETL listed to UL 13
Meets UL 1581 Vertical Tray Flame Test (FT-1)
Type CL2

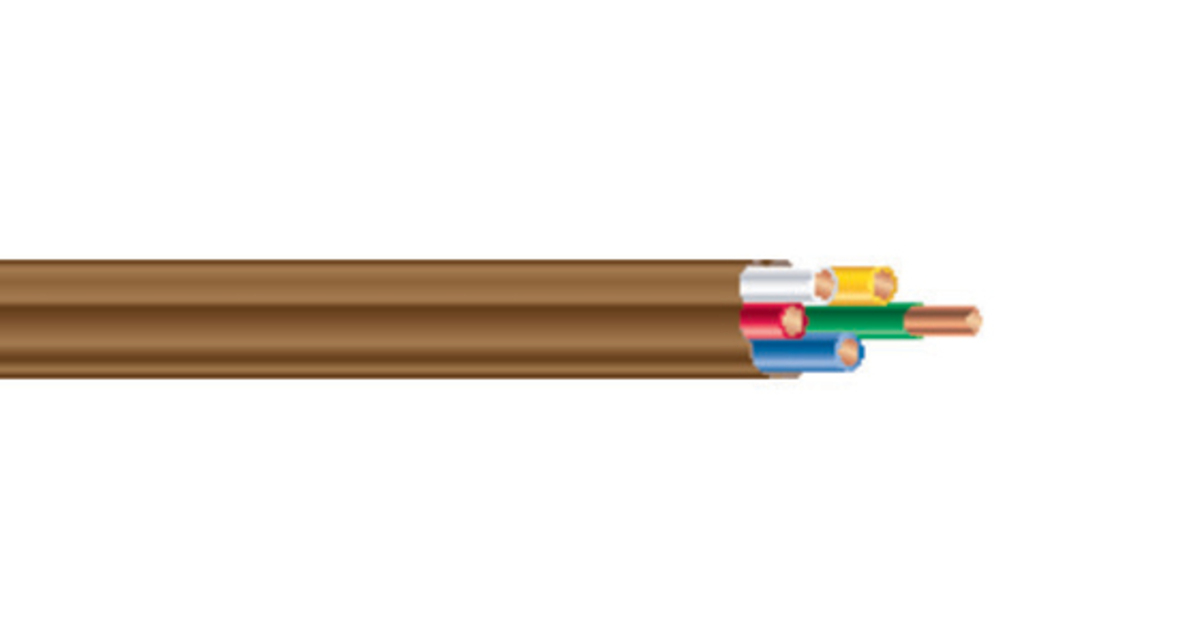

Construction

Solid copper conductors with 6 mils of PVC insulation
Conductors are covered with a PVC jacket, Brown or White
Ripcord
