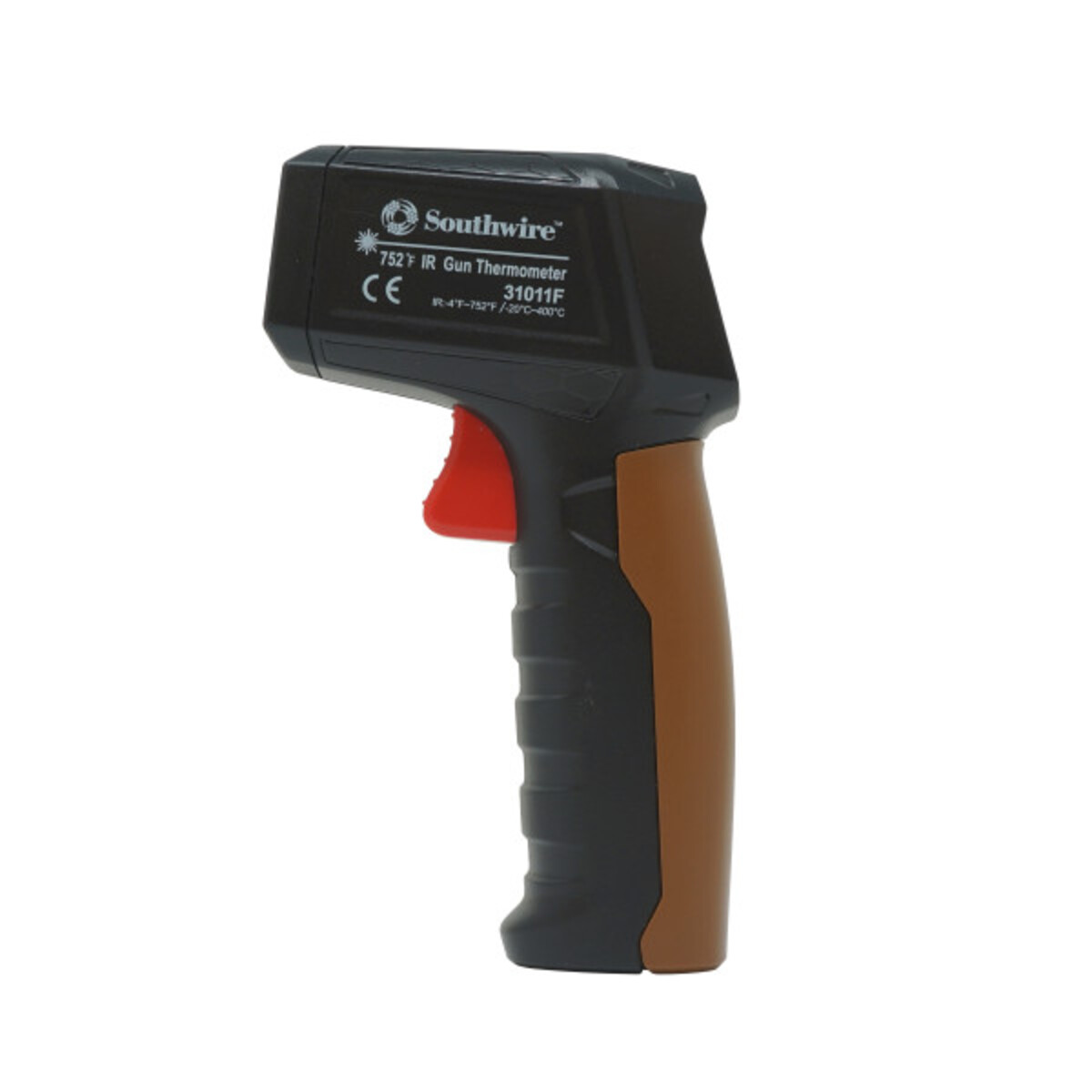

31011F, 750F 10:1 IR THERM 1 LASER

Southwire #: 65111640 Model #: 31011F

Write a Review

750◦F 10:1 Infrared Thermometer with laser targetting. 10:1 distance to spot ratio. Fixed emissivity.

Where to Buy

Download Category Specifications

Excel Table

Features & Benefits

10:1 Distance to Spot Ratio
-4F to 752F (-20C to 400C)
Emissivity fixed at 0.95
Response time: </ 500ms (95% of reading)
Display Resolution: 0.1◦F (0.1◦C)
Laser Class Level: Class 2 Conform to EN 60825-1:2014

Specifications

Model #	31011F 31011F
UPC #	032886710278 032886710278
Product Height	5.6 14.22	inch cm
Product Width	1.6 4.06	inch cm
Depth	3.25 8.26	inch cm
Product Weight	0.35 0.16	lbs kg

Resources

31011F Operating Manual

What's the maximum distance away that I can effectively measure temperature? Given the spot ratio of 10:1, if the distance surface is large enough to (more than) contain the spot, how far away will the measurement be accurate?

Asked by: Jim4th

Hi Jim, Although we have not tested this before, based off our estimation, you can be at least 20 feet away and likely much further as long as there are no obstructions with the measuring spot which follows the 10:1 spot ratio. We hope this helps!

Answered by: Southwire1

Date published: 2022-02-16

What is effective range for this model?

Asked by: Jim3rd

It has a 10:1 distance to spot ratio, meaning it can detect a 1-inch circle at a distance of 10 inches.

Answered by: Southwire

Date published: 2022-02-12
